A new dataset for mongolian online handwritten recognition

Mongolian online handwriting recognition can be considered a mapping process from a text trajectory sequence to a character sequence. In the Mongolian recognition task of this paper, based on the online Mongolian handwriting track data, the neural network recognizes the corresponding text, which can be considered as a sequence to sequence learning process. In the end-to-end task of variable-length sequences, the most widely used framework is encoder-decode structure, which is why in this paper we choose the encoder-decode framework structure to build the learning network as our baseline model. Another way of dealing with the variable length sequence problem is to use the CTC model, so in this paper we also combine the CTC network with the long short-term memory (LSTM) network in a comparative experiment. In total, three types of models were trained and validated. These are two encoder–decoder architectures. In the baseline model, we constructed an encoder–decoder33 based on an online Mongolian handwritten recognition model with an attention mechanism34. The second is a Transformer-based model, and the third is a LSTM with a CTC-based model. A full description of these three architectures is given in “Details of models” section. Finally, all the models were evaluated with a WER and character error rate (CER), where the CER is expressed as the average edit distance of words. Edit distance, also known as Levenshtein distance, is a quantitative measurement of the difference between two strings. It is measured by calculating how many times it takes to change one string into another.

Preprocessing and framing

To obtain a better recognition effect, the original writing track information needs some preprocessing operations. Owing to variations in writing speed, the acquired points were not distributed evenly along the stroke trajectory. Interpolation and resampling operations were used to recover missing data or force points to lie at uniform distances. Note that the image in the Fig. 9a was drawn from an original trajectory data. The detailed preprocessing steps are as follows:

  1. 1.

    Interpolation. Piecewise Bezier interpolation was used in the present study because it helps to interpolate points among a fixed number of points. This further helps distance the points at an equal interval. Figure 9a,b shows a comparison between the original trajectory data and the result of Bezier interpolation.

  2. 2.

    Resampling. After inserting the points, we resampled the samples according to the Euclidean distance between two adjacent points defined as the sampling distance. Figure 9b,c shows a comparison between the Bezier interpolation data and the trajectory data after resampling. The sampling distance is a parameter that needs to be adjusted.

  3. 3.

    Deletion. By screening the dataset for samples with less than a certain number of sampling points, a final threshold of 50 points was selected as the criterion for distinguishing whether a sample passed or failed, as we found that 50 points could be used as a threshold to screen out as much unqualified text as possible while removing as few correct samples as possible. We deleted the samples whose sampling point length was less than 50 after sampling.

  4. 4.

    Normalization. After the central axis of the sample data was translated to the X-axis, we normalized the sample on the XY-axis to ensure that the sampled handwritten text was in the center of the canvas. The final trajectory data are shown in Fig. 9d.

Figure 9

Trajectory data preprocessing.

The preprocessed text trajectory is a series of two-dimensional coordinates along the writing order. We used a sliding window to move along the writing order and concatenate all the coordinates within the window into a frame of data. A certain overlap was maintained when the window slid, and the framing process is shown in Fig. 10.

Figure 10
figure 10

Trajectory image framing example.

Both the sliding window size and the overlap length are in units of trajectory points, which are model hyperparameters that need to be tuned.

Figure 11
figure 11

Trajectory data framing example.

The top row of data in Fig. 11 represents a sample trajectory, which identifies the range of a frame and the starting position of the next frame after a certain amount of offset. This figure is a diagram of framing for a window size of 4 and an overlap of 3. The matrix in Fig. 11 is the result of framing the sample, where each row represents a frame of data. This matrix is also the input data that is fed into the model.

Details of models

Baseline model

The proposed model was designed as a sequence-to-sequence architecture with an attention mechanism. This model is composed of a multi-layer BiGRU-based encoder and a GRU-based decoder, and a attention network is adopted to connect between the encoder and the decoder. Detailed diagram of the model for the specific encoder and decoder implementations of baseline model is shown in Fig. 12. The architecture is shown in Fig. 13.

Figure 12
figure 12

Architecture of the GRU based model.

Figure 13
figure 13

Architecture of the encoder–decoder model.

The encoder is responsible for compressing the input sequence into a vector of a specified length, which can be regarded as the semantics of the sequence, while the decoder is responsible for generating the specified sequence according to the semantic vector. In this model, the sequence of frames from the handwritten trajectory is passed to the encoder and converted into hidden states of the corresponding encoder. Then, the last two hidden states of BiGRU are added up as the decoder’s initial hidden states. Next, at each step of the decoding process, the hidden states and encoder outputs are fed into the attention layer, in which an attention weight vector is calculated. Finally, the decoder receives the previous prediction output (initially, it feeds the start symbol SOS) and the attention context to generate a sequence of letters as the output of the model. The attention layer plays an important part in the proposed model because it allows the decoder to focus on different positions in a sequence of frames during decoding. In this model, the hidden layer size of GRU and the layer count of the encoder are hyperparameters that need to be tuned. The last layer of the decoder is a softmax classification layer, and the number of neurons depends on the number of target characters. When the Mongolian grapheme code is used as the target sequence, it contains a total of 52 neurons, and when Unicode is used, it contains a total of 36 neurons, including the end symbol EOS. In each step of decoding, the character with the highest probability is selected as the current output, and the decoding is stopped when EOS is encountered.

Transformer model

Similar to the proposed baseline model, the recognition model based on the transformer can also be regarded as being composed of an encoder and decoder and has been shown to be effective in numerous sequence-to-sequence problems. Thus, we built a Transformer model whose architecture is shown in Fig.13, and measured its performance on our dataset.

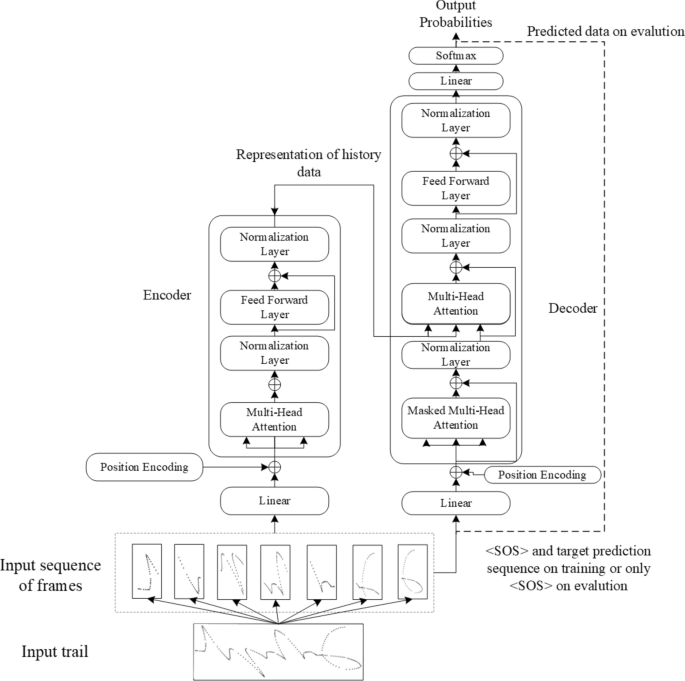

Figure 14
figure 14

Architecture of the transformer model.

Vaswani et al.35 gave a specific description of the working principle of the transformer, which is not repeated here. Next, we focused on aspects related to understanding implementation of the transformer, and based on this, we built a simple model based on the transformer. Detailed diagram of the model for the specific encoder and decoder implementations of transformer model is shown in Fig. 14. Different from the baseline model, in the transformer, there are multiple sub-encoders with the same structure in the encoding module, and the input of each sub-encoder is the output of the previous sub-encoder. Each sub-encoder is composed of a self-attention mechanism and a feedforward neural network. The decoder has a structure similar to its encoder. In addition to the two sub-layers in each encoder layer, the decoder also inserts a third sublayer, which performs multiple attention on the output of the encoder stack. The experimental results of the baseline model confirm that the data characteristics contained in the raw data without any processing are insufficient. Therefore, the track data are divided into frames to make the characteristic information of the data more obvious. Then, the frame data are embedded, position-encoded, and sent to the encoder. After the transformer network, we predict one label at a time, while the cross-entropy loss function is applied in these situations.

LSTM-CTC model

LSTM is a type of recurrent neural network. LSTMs were developed to solve the vanishing and exploding gradient problems that plague many RNNs. Because LSTMs are much better at dealing with these two issues than earlier RNNs have been, LSTMs are suitable for tackling tasks that involve long-range dependencies in sequential data32. CTC is widely used in speech recognition, text recognition, and other fields to solve the problem where the lengths of input and output sequences are different and cannot be aligned. In our model, the CTC is actually our loss function. The LSTM with the CTC-based model consists of an LSTM network and a CTC network, as shown in Fig. 15. The LSTM network consists of a bidirectional LSTM (BiLSTM) layer with a 20% dropout rate to avoid overfitting. After the preprocessed frame data are sent to the BiLSTM layer, and this layer is followed by a fully connected layer and then a fully connected output layer of 52 classes, depending on the grapheme code classes, which has 51 letters and an empty character blank. After being normalized by the softmax layer, the output is sent to the CTC layer to calculate the loss with real labels of the grapheme code.

Figure 15
figure 15

Architecture of the LSTM-CTC model.

Experimental results

Below, we give the experimental results of the optimization process of tunable parameters of the baseline model. The comparison results of the optimal performance of the three models are given at the end of this section. From the preprocessed MOLHW dataset, we randomly selected 70% as the training set, 20% as the test set, and the remaining 10% as the validation set. In all subsequent experiments, grapheme codes were used as target labels, but finally, we compared the performance of grapheme codes and Unicode under the same model. The cross-entropy loss function was used during the encoder–decoder training, and the training was stopped when the loss on the validation set was no longer reduced. Then, the epoch with the smallest loss on the validation set was selected as the optimal model. Each training epoch took nearly 270 second on the GPU NVIDIA Quadro P5000.

Before the model tuning, we carried out experiments with the same baseline model on the original data and the preprocessed data, with the fixed parameters selected as the sliding window size was 1, the overlap was 1, the hidden layer size was 64, and the number of encoder layers was 1. The corresponding experimental results are shown in Table 2 . The results in the table show that the preprocessed data performed better under the same model, so we carried out subsequent experiments on the preprocessed data.

Table 2 Original and preprocessed data experiment result.

As mentioned above, the sampling distance, sliding window size, overlap, hidden layer size, and number of encoder layers are all hyperparameters that had to be tuned. The tuning of hyperparameters adopted a simple search strategy. The first hyperparameter to be tuned was the sampling distance, and the search range was 3, 4, 5, and 6. When tuning, the other hyperparameters selected empirical values, and the sliding window size was 50, the overlap was 10, hidden layer size was 128, and the number of encoder layers was 1. The results are shown in Table 3. It can be seen from the table that the model had the best effect on the test set with a sampling distance of 4, so our subsequent experiments all sampled the dataset with a sampling distance of 4.

Table 3 Sampling distance tuning experiment result.

The second hyperparameter to be tuned was the sliding window size, and the search range was 15, 20, 30, 40, 50, and 60. When tuning, the other hyperparameters selected empirical values, the overlap was 20, the hidden layer size was 64, and number of encoder layers was 1. The experimental results are shown in Table 4. The experimental results show that the performance was best when the sliding window size was equal to 20. Next, we tuned the overlap hyperparameters, and compared the results when they were set to 4, 10, and 20. The results are shown in Table 5; the encoder–decoder network worked best when the overlap was 10.

Table 4 Sliding window size tuning experiment result.
Table 5 Overlap tuning experiment result.

The optimal values of the three hyperparameters of sampling distance, sliding window size, and overlap in the data preprocessing process were determined, and their values were 4, 20, and 10, respectively. In the following experiments, we searched hidden layers of sizes 64, 128, and 256, and searched encoder layers 1, 2, 3, and 4 simultaneously. The results are shown in Table 6. It can be seen that with the increase of the number of layers, the recognition effect gradually improved, but after reaching four layers, the increase was no longer obvious. When the number of layers was one and two, as the size of the hidden layer increased, the recognition performance also improved, but when the number of layers was three, the performance decreased when the size of the hidden layer reached 256. The best performance was achieved when the number of layers was three and the hidden layer size was 128, with a CER of 0.471 and a WER of 24.281% on the test set.

Table 6 Num layer and hidden size tuning experiment result.

At the end of the experiment, we compared the performance of grapheme codes and Unicode. We used Unicode as the label and repeated the experiment, in which the model parameters selected the optimal parameters of the grapheme code, and the results are shown in Table 7. It can be seen that the performance of grapheme code was much higher than that of Unicode encoding, in which CER was reduced by 0.309, and WER is reduced by 17.437% on the test set.

Table 7 Experimental results of Unicode and grapheme code comparison.

With the preprocessed data, the first three rows of Table 8 shows the recognition accuracy based on three models. In terms of WER and CER, the transformer model performed much better than our baseline model, with a 7.312% increase in the WER rate and a 0.098% increase in the CER on the test set. Our results again confirm the excellent performance of the Transformer structure-in-sequence to sequence problem. We tested the performance of the original data with the three models, and the results are shown in the last three rows of Table 8 . In overall comparison, the preprocessed data showed strong learnability for all three models which shows that our pre-processing was very effective.

Table 8 Experimental results of different model comparison.

Error analysis

For the experimental results of the our baseline model, we give the error analysis on the test set. The number of samples in the test set was 32,926, and the WER was 24.81%; that is, 8168 samples had recognition errors. Figure 16 shows the images with recognition errors caused by different error types. Figure 16a shows that the corresponding true label is ‘s az jz iz gzz lz az s ix’, and owing to the insertion of ‘hes bax’, the wrong decoding result of the model is ‘s az jz iz gzz lz az s hes bax ix’. Figure 16b shows that the corresponding true label is ‘a o iz gzz hes box c iz hes bax hes box’, and because of the lack of ’gzz,’ the wrong decoding result of the model is ‘a o iz hes box c iz hes bax hes box’. Figure 16c shows that the corresponding true label is ‘n az iz iz lz az hes box lz c iz bos bax lx’, and because ‘hes’ replaces ‘bos’, the wrong decoding result of the model is ‘n az iz iz lz az hes box lz c iz hes bax lx’.

Figure 16
figure 16

Incorrectly recognized images.

For the above three errors, the statistics of recognition errors are shown in Table 9. As we can see from the table, the most common occurrence in the recognition process is repalce errors, meaning that a correct character is replaced by another incorrect character. This is followed by deletion errors, where a character is not recognised, resulting in a character being missing from the recognition result, and finally insertion errors, where a single character is incorrectly recognised as more than one character, resulting in an extra character in the recognition result.

Table 9 Incorrectly recognized images.

We analyzed the most common errors, replace error. The statistics of the test set replace error results are given in Table 10.

Table 10 Statistics of replace error.

As can be seen from the table, the character that was most likely to be replaced and replaced was ‘ax’. Because of its simple structure, it is easily confused with other similar characters in the case of uneven data coordinates.
